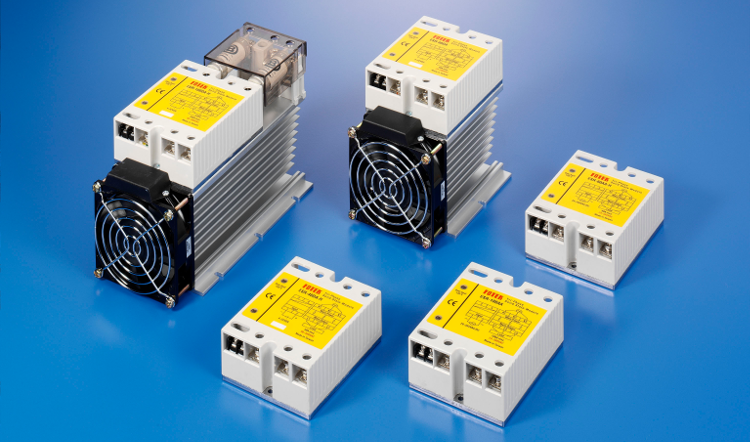

ESR-AA系列三相高功率固態模組(可控硅模塊)

系列說明

1.高電介強度超過4KV
2.高絕緣強度超過100MΩ/500VDC
3.附過熱保護回路可防止過熱破壞
4.耐瞬間電流超過額定電流10倍以上
5.附雙重突波吸收回路有效防止突波破壞
6.符合EN60947-4-3 和 EN60950標準

產品認證：

產品型式

產品圖

產品型號特點說明詳細規格

標準型-AC to AC

ESR-25AA 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:25A max. 查看規格
ESR-40AA 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:40A max. 查看規格
ESR-60AA 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:60A max. 查看規格
ESR-80AA 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:80A max. 查看規格
ESR-100AA 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:100A max. 查看規格

高壓型-AC to AC

ESR-25AA-H 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:25A max. 查看規格
ESR-40AA-H 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:40A max. 查看規格
ESR-60AA-H 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:60A max. 查看規格
ESR-80AA-H 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:80A max. 查看規格
ESR-100AA-H 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:100A max. 查看規格

標準型-AC to AC(含風扇+ FUSE)

ESR-40AA+ 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:40A max. 查看規格
ESR-60AA+ 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:60A max. 查看規格
ESR-80AA+ 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:80A max. 查看規格
ESR-100AA+ 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:100A max. 查看規格

高壓型-AC to AC(含風扇+ FUSE)

ESR-40AA-H+ 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:40A max. 查看規格
ESR-60AA-H+ 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:60A max. 查看規格
ESR-80AA-H+ 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:80A max. 查看規格
ESR-100AA-H+ 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:100A max. 查看規格
