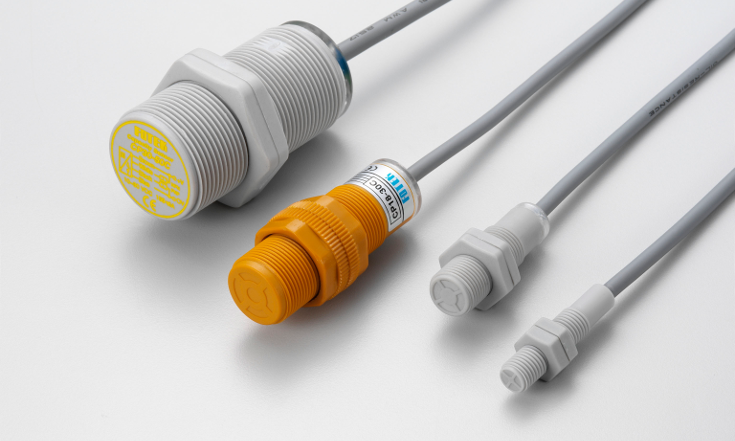

CP Series Capacitive Proximity Sensor

Series Description

  • ※Sensitivity adjuster:14 turns trimmer
  • ※High stability with thermal compensated
  • ※Metallic & Non-Metallic objects are sensible、Including Glass、Lumber、Oil、Water and Plastic object ets.

Certification:

Product type
product picture
  • Product number Features Description Detailed specifications
M8 Tubular type
  • CP08-06N Sensible Distance:6.0mm、Output method:NPN/NO View specs
  • CP08-06NB Sensible Distance:6.0mm、Output method:NPN/NC View specs
  • CP08-06P Sensible Distance:6.0mm、Output method:PNP/NO View specs
  • CP08-06PB Sensible Distance:6.0mm、Output method:PNP/NC View specs
M12 Tubular type
  • CP12-10N Sensible Distance:10.0mm、Output method:NPN/NO View specs
  • CP12-10NB Sensible Distance:10.0mm、Output method:NPN/NC View specs
  • CP12-10P Sensible Distance:10.0mm、Output method:PNP/NO View specs
  • CP12-10PB Sensible Distance:10.0mm、Output method:PNP/NC View specs
M18 Tubular type
  • CP18-30N Sensible Distance:20.0mm、Output method:NPN/NO、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP18-30NB Sensible Distance:20.0mm、Output method:NPN/NC、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP18-30P Sensible Distance:20.0mm、Output method:PNP/NO、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP18-30PB Sensible Distance:20.0mm、Output method:PNP/NC、Sensitivity Adjuster: 14 turns Trimmer View specs
M30 Tubular type
  • CP30-50C Sensible Distance:30.0mm、Output method:NPN&PNP、Output Status:NO、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP30-50CB Sensible Distance:30.0mm、Output method:NPN&PNP、Output Status:NC、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP30-50S Sensible Distance:30.0mm、Output method:SCR、Output Status:NO、Sensitivity Adjuster: 14 turns Trimmer View specs
  • CP30-50SB Sensible Distance:30.0mm、Output method:SCR、Output Status:NC、Sensitivity Adjuster: 14 turns Trimmer View specs
