PM Series Inductive Proximity Sensor

Series Description

  • ※DC type with short circuit protection and polarity reversed protection
  • ※AC type with surge absorbing circuit may avoid surge damaged
  • ※High solid compact structure IP-67 suited to applied in any poor circumstance
  • ※All models with operation LED ; Easy to adjusted

Certification:

Product type

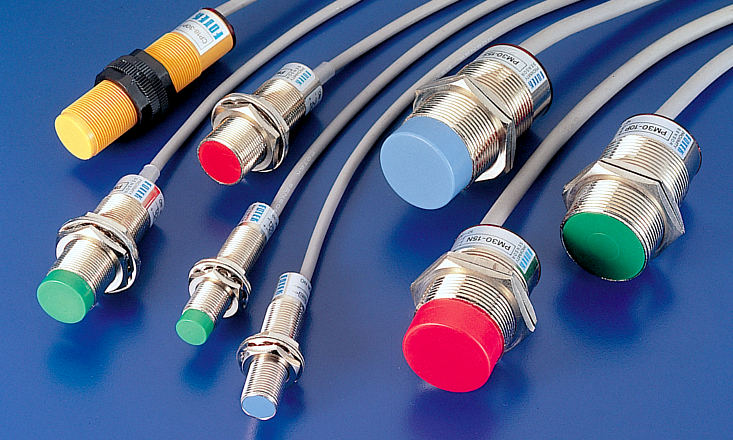

product picture
  • Product number Features Description Detailed specifications
4Φ Cylindrical type
  • PT04-01N Sensible Distance:1.2mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PT04-01P Sensible Distance:1.2mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PT04-02N Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PT04-02P Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
6.5Φ Cylindrical type
  • PT06-01N Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PT06-01P Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PT06-02N Sensible Distance:3.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PT06-02P Sensible Distance:3.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
M5 Cylindrical type
  • PM05-01N Sensible Distance:1.2mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM05-01NB Sensible Distance:1.2mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM05-01P Sensible Distance:1.2mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM05-01PB Sensible Distance:1.2mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM05-02N Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM05-02NB Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM05-02P Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM05-02PB Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
M8 Cylindrical type
  • PM08-01NE Sensible Distance:1.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM08-01NBE Sensible Distance:1.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM08-01PE Sensible Distance:1.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM08-01PBE Sensible Distance:1.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM08-02NE Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM08-02NBE Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM08-02PE Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM08-02PBE Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
  • PM08-01NSE Sensible Distance:1.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM08-01NBSE Sensible Distance:1.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM08-01PSE Sensible Distance:1.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM08-01PBSE Sensible Distance:1.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM08-02NSE Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM08-02NBSE Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM08-02PSE Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM08-02PBSE Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM08-01N-P Sensible Distance:1.0mm、Output method:NPN/NO、IP-67、Housing Material:PP View specs
  • PM08-01NB-P Sensible Distance:1.0mm、Output method:NPN/NC、IP-67、Housing Material:PP View specs
  • PM08-01P-P Sensible Distance:1.0mm、Output method:PNP/NO、IP-67、Housing Material:PP View specs
  • PM08-01PB-P Sensible Distance:1.0mm、Output method:PNP/NC、IP-67、Housing Material:PP View specs
  • PM08-02N-P Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Housing Material:PP View specs
  • PM08-02NB-P Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Housing Material:PP View specs
  • PM08-02P-P Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Housing Material:PP View specs
  • PM08-02PB-P Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Housing Material:PP View specs
  • PM08-01N-K Sensible Distance:1.0mm、Output method:NPN/NO、IP-67、SUS-304 View specs
  • PM08-01NB-K Sensible Distance:1.0mm、Output method:NPN/NC、IP-67、SUS-304 View specs
  • PM08-01P-K Sensible Distance:1.0mm、Output method:PNP/NO、IP-67、SUS-304 View specs
  • PM08-01PB-K Sensible Distance:1.0mm、Output method:PNP/NC、IP-67、SUS-304 View specs
  • PM08-02N-K Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、SUS-304 View specs
  • PM08-02NB-K Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、SUS-304 View specs
  • PM08-02P-K Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、SUS-304 View specs
  • PM08-02PB-K Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、SUS-304 View specs
M12 Cylindrical type
  • PM12-02N Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM12-02NB Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM12-02P Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM12-02PB Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM12-02S Sensible Distance:2.0mm、Output method:SCR、Output Status:NO、IP-67、Shielded View specs
  • PM12-02SB Sensible Distance:2.0mm、Output method:SCR、Output Status:NC、IP-67、Shielded View specs
  • PM12-04N Sensible Distance:4.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM12-04NB Sensible Distance:4.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM12-04P Sensible Distance:4.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM12-04PB Sensible Distance:4.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
  • PM12-04S Sensible Distance:4.0mm、Output method:SCR、Output Status:NO、IP-67、Unshielded View specs
  • PM12-04SB Sensible Distance:4.0mm、Output method:SCR、Output Status:NC、IP-67、Unshielded View specs
  • PM12E-05N Sensible Distance:5.0mm、Output method:NPN/NO、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM12E-05NB Sensible Distance:5.0mm、Output method:NPN/NC、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM12E-08N Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Unshielded ( Long Sensible Distance) View specs
  • PM12E-08NB Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Unshielded ( Long Sensible Distance) View specs
  • PM12-02NS Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM12-02NBS Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM12-02PS Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM12-02PBS Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM12-04NS Sensible Distance:4.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM12-04NBS Sensible Distance:4.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM12-04PS Sensible Distance:4.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM12-04PBS Sensible Distance:4.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM12-02N-E Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Full Screw Type View specs
  • PM12-02NB-E Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Full Screw Type View specs
  • PM12-02P-E Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Full Screw Type View specs
  • PM12-02PB-E Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Full Screw Type View specs
  • PM12-04N-E Sensible Distance:4.0mm、Output method:NPN/NO、IP-67、Full Screw Type View specs
  • PM12-04NB-E Sensible Distance:4.0mm、Output method:NPN/NC、IP-67、Full Screw Type View specs
  • PM12-04P-E Sensible Distance:4.0mm、Output method:PNP/NO、IP-67、Full Screw Type View specs
  • PM12-04PB-E Sensible Distance:4.0mm、Output method:PNP/NC、IP-67、Full Screw Type View specs
  • PM12E-05N-E Sensible Distance:5.0mm、Output method:NPN/NO、IP-67、Shielded ( Long Sensible Distance)、Full Screw Type View specs
  • PM12E-05NB-E Sensible Distance:5.0mm、Output method:NPN/NC、IP-67、Shielded ( Long Sensible Distance)、Full Screw Type View specs
  • PM12E-08N-E Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Unshielded ( Long Sensible Distance)、Full Screw Type View specs
  • PM12E-08NB-E Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Unshielded ( Long Sensible Distance)、Full Screw Type View specs
  • PM12-04N-P Sensible Distance:4.0mm、Output method:NPN/NO、IP-67、Housing Material:PP View specs
  • PM12-04NB-P Sensible Distance:4.0mm、Output method:NPN/NC、IP-67、Housing Material:PP View specs
  • PM12-04P-P Sensible Distance:4.0mm、Output method:PNP/NO、IP-67、Housing Material:PP View specs
  • PM12-04PB-P Sensible Distance:4.0mm、Output method:PNP/NC、IP-67、Housing Material:PP View specs
  • PM12-04S-P Sensible Distance:4.0mm、Output method:SCR、Output Status:NO、IP-67、Housing Material:PP View specs
  • PM12-04SB-P Sensible Distance:4.0mm、Output method:SCR、Output Status:NC、IP-67、Housing Material:PP View specs
M12 Cylindrical type-M12 Connector Type
  • PM12-02N-M12 Sensible Distance:2.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM12-02NB-M12 Sensible Distance:2.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM12-02P-M12 Sensible Distance:2.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM12-02PB-M12 Sensible Distance:2.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM12-04N-M12 Sensible Distance:4.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM12-04NB-M12 Sensible Distance:4.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM12-04P-M12 Sensible Distance:4.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM12-04PB-M12 Sensible Distance:4.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
M18 Cylindrical type
  • PM18-05N Sensible Distance:5.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM18-05NB Sensible Distance:5.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM18-05P Sensible Distance:5.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM18-05PB Sensible Distance:5.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM18-05S Sensible Distance:5.0mm、Output method:SCR、Output Status:NO、IP-67、Shielded View specs
  • PM18-05SB Sensible Distance:5.0mm、Output method:SCR、Output Status:NC、IP-67、Shielded View specs
  • PM18-08N Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM18-08NB Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM18-08P Sensible Distance:8.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM18-08PB Sensible Distance:8.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
  • PM18-08S Sensible Distance:8.0mm、Output method:SCR、Output Status:NO、IP-67、Unshielded View specs
  • PM18-08SB Sensible Distance:8.0mm、Output method:SCR、Output Status:NC、IP-67、Unshielded View specs
  • PM18E-10N Sensible Distance:10.0mm、Output method:NPN/NO、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM18E-10NB Sensible Distance:10.0mm、Output method:NPN/NC、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM18E-16N Sensible Distance:16.0mm、Output method:NPN/NO、IP-67、Unshielded( Long Sensible Distance) View specs
  • PM18E-16NB Sensible Distance:16.0mm、Output method:NPN/NC、IP-67、Unshielded( Long Sensible Distance) View specs
  • PM18-05NS Sensible Distance:5.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM18-05NBS Sensible Distance:5.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM18-05PS Sensible Distance:5.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM18-05PBS Sensible Distance:5.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM18-08NS Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM18-08NBS Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM18-08PS Sensible Distance:8.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM18-08PBS Sensible Distance:8.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM18-08N-P Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Housing Material:PP View specs
  • PM18-08NB-P Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Housing Material:PP View specs
  • PM18-08P-P Sensible Distance:8.0mm、Output method:PNP/NO、IP-67、Housing Material:PP View specs
  • PM18-08PB-P Sensible Distance:8.0mm、Output method:PNP/NC、IP-67、Housing Material:PP View specs
  • PM18-08S-P Sensible Distance:8.0mm、Output method:SCR、Output Status:NO、IP-67、Housing Material:PP View specs
  • PM18-08SB-P Sensible Distance:8.0mm、Output method:SCR、Output Status:NC、IP-67、Housing Material:PP View specs
M18 Cylindrical type-M12 Connector Type
  • PM18-05N-M12 Sensible Distance:5.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM18-05NB-M12 Sensible Distance:5.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM18-05P-M12 Sensible Distance:5.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM18-05PB-M12 Sensible Distance:5.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM18-08N-M12 Sensible Distance:8.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM18-08NB-M12 Sensible Distance:8.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM18-08P-M12 Sensible Distance:8.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM18-08PB-M12 Sensible Distance:8.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
M30 Cylindrical type
  • PM30-10N Sensible Distance:10.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM30-10NB Sensible Distance:10.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM30-10P Sensible Distance:10.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM30-10PB Sensible Distance:10.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM30-10S Sensible Distance:10.0mm、Output method:SCR、Output Status:NO、IP-67、Shielded View specs
  • PM30-10SB Sensible Distance:10.0mm、Output method:SCR、Output Status:NC、IP-67、Shielded View specs
  • PM30-15N Sensible Distance:15.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM30-15NB Sensible Distance:15.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM30-15P Sensible Distance:15.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM30-15PB Sensible Distance:15.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
  • PM30-15S Sensible Distance:15.0mm、Output method:SCR、Output Status:NO、IP-67、Unshielded View specs
  • PM30-15SB Sensible Distance:15.0mm、Output method:SCR、Output Status:NC、IP-67、Unshielded View specs
  • PM30E-20N Sensible Distance:20.0mm、Output method:NPN/NO、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM30E-20NB Sensible Distance:20.0mm、Output method:NPN/NC、IP-67、Shielded ( Long Sensible Distance) View specs
  • PM30E-30N Sensible Distance:30.0mm、Output method:NPN/NO、IP-67、Unshielded ( Long Sensible Distance) View specs
  • PM30E-30NB Sensible Distance:30.0mm、Output method:NPN/NC、IP-67、Unshielded ( Long Sensible Distance) View specs
  • PM30-20N Sensible Distance:20.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM30-20NB Sensible Distance:20.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM30-20P Sensible Distance:20.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM30-20PB Sensible Distance:20.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
  • PM30-15N-S Sensible Distance:15.0mm、Output method:NPN/NO、IP-67、Short Housing Type View specs
  • PM30-15NB-S Sensible Distance:15.0mm、Output method:NPN/NC、IP-67、Short Housing Type View specs
  • PM30-15P-S Sensible Distance:15.0mm、Output method:PNP/NO、IP-67、Short Housing Type View specs
  • PM30-15PB-S Sensible Distance:15.0mm、Output method:PNP/NC、IP-67、Short Housing Type View specs
  • PM30-15N-P Sensible Distance:15.0mm、Output method:NPN/NO、Housing Material:PP View specs
  • PM30-15NB-P Sensible Distance:15.0mm、Output method:NPN/NC、IP-67、Housing Material:PP View specs
  • PM30-15P-P Sensible Distance:15.0mm、Output method:PNP/NO、IP-67、Housing Material:PP View specs
  • PM30-15PB-P Sensible Distance:15.0mm、Output method:PNP/NC、IP-67、Housing Material:PP View specs
  • PM30-15S-P Sensible Distance:15.0mm、Output method:SCR、Output Status:NO、IP-67、Housing Material:PP View specs
  • PM30-15SB-P Sensible Distance:15.0mm、Output method:SCR、Output Status:NC、IP-67、Housing Material:PP View specs
  • PM30E-30N-P Sensible Distance:30.0mm、Output method:NPN/NO、IP-67、Housing Material:PP、Unshielded ( Long Sensible Distance) View specs
  • PM30E-30NB-P Sensible Distance:30.0mm、Output method:NPN/NC、IP-67、Housing Material:PP、Unshielded ( Long Sensible Distance) View specs
M30 Cylindrical type-M12 Connector Type
  • PM30-10N-M12 Sensible Distance:10.0mm、Output method:NPN/NO、IP-67、Shielded View specs
  • PM30-10NB-M12 Sensible Distance:10.0mm、Output method:NPN/NC、IP-67、Shielded View specs
  • PM30-10P-M12 Sensible Distance:10.0mm、Output method:PNP/NO、IP-67、Shielded View specs
  • PM30-10PB-M12 Sensible Distance:10.0mm、Output method:PNP/NC、IP-67、Shielded View specs
  • PM30-15N-M12 Sensible Distance:15.0mm、Output method:NPN/NO、IP-67、Unshielded View specs
  • PM30-15NB-M12 Sensible Distance:15.0mm、Output method:NPN/NC、IP-67、Unshielded View specs
  • PM30-15P-M12 Sensible Distance:15.0mm、Output method:PNP/NO、IP-67、Unshielded View specs
  • PM30-15PB-M12 Sensible Distance:15.0mm、Output method:PNP/NC、IP-67、Unshielded View specs
