Home
Product Description
Photoelectric Level & Capacitive Level Sensor
FL Series Photoelectric Level Sensor
Lead Wire Type

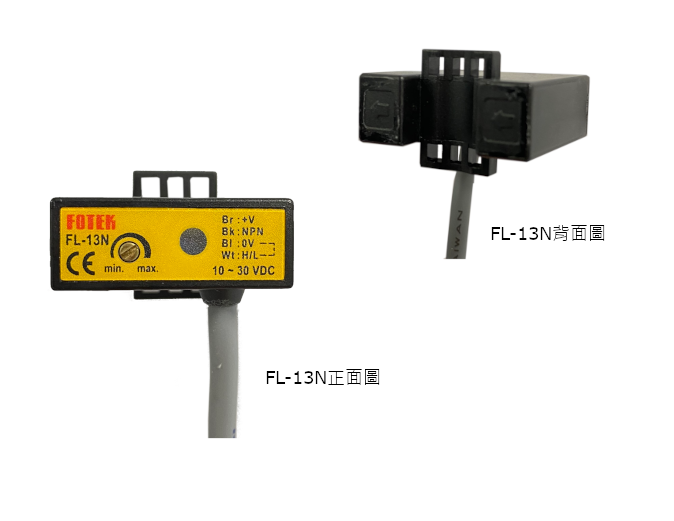

FLSeries Photoelectric Level Sensor
product name:
FLSeries Photoelectric Level Sensor
model:
FL-13P
Type:
Lead Wire Type
related products
FLSeries Photoelectric Level Sensor
FL-13N

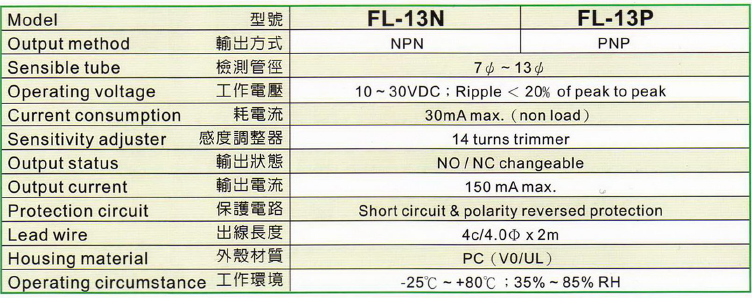

Specifications

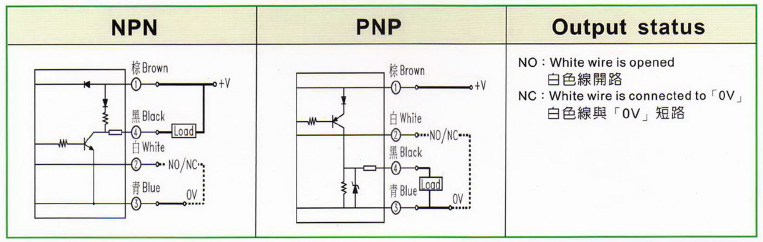

Wiring Diagram

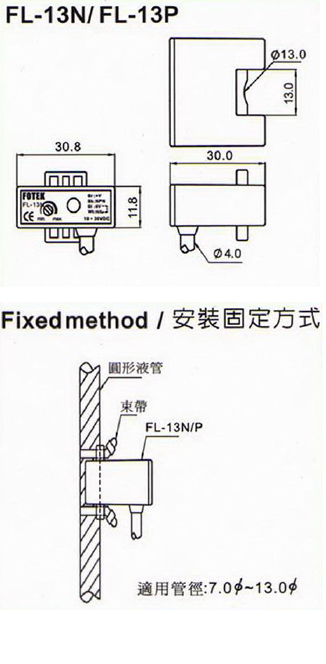

Dimensions
Product Manual
FL-CP
