Home
Product Description
Photoelectric Sensor
mF&FF Series Optical Fiber Sensor
Auto Tuning Type
mF&FF Series Optical Fiber Sensor
product name:

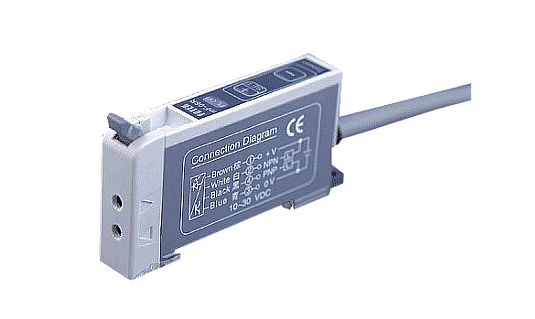

mF&FF Series Optical Fiber Sensor
model:
mF-06R
Type:
Auto Tuning Type
related products
mF&FF Series Optical Fiber Sensor
mF-01B
mF&FF Series Optical Fiber Sensor
mF-06RT

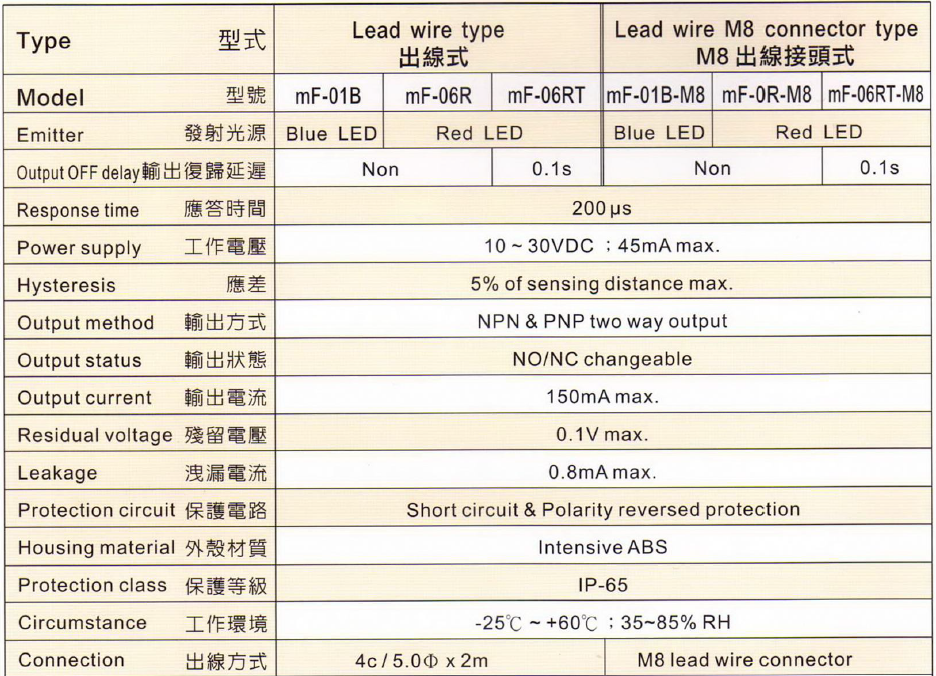

Specifications

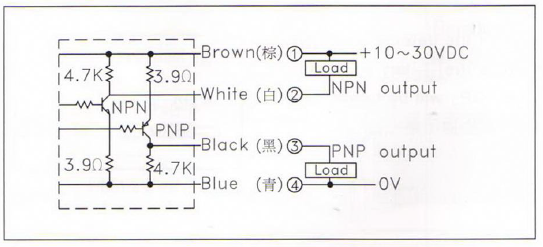

Wiring Diagram

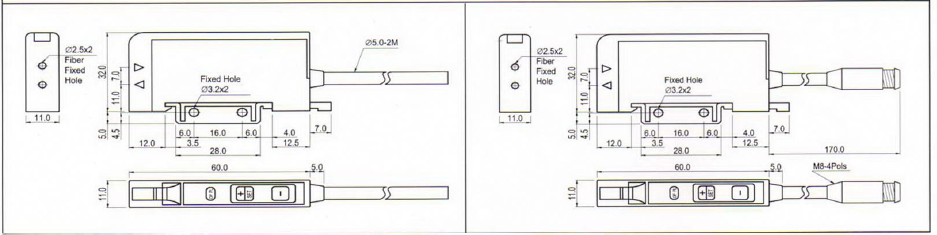

Dimensions
Product Manual
PHO-MF
