Home
Product Description
Flow Metter & Flow Controller

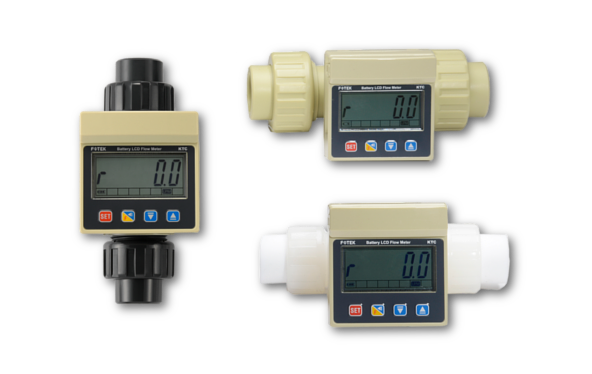

KTC Series Battery Type LCD Flow Meter
Battery Type LCD Flow Meter
KTC Series Battery Type LCD Flow Meter
product name:
KTC Series Battery Type LCD Flow Meter
model:
KTC-□□系列
Type:
Battery Type LCD Flow Meter
related products

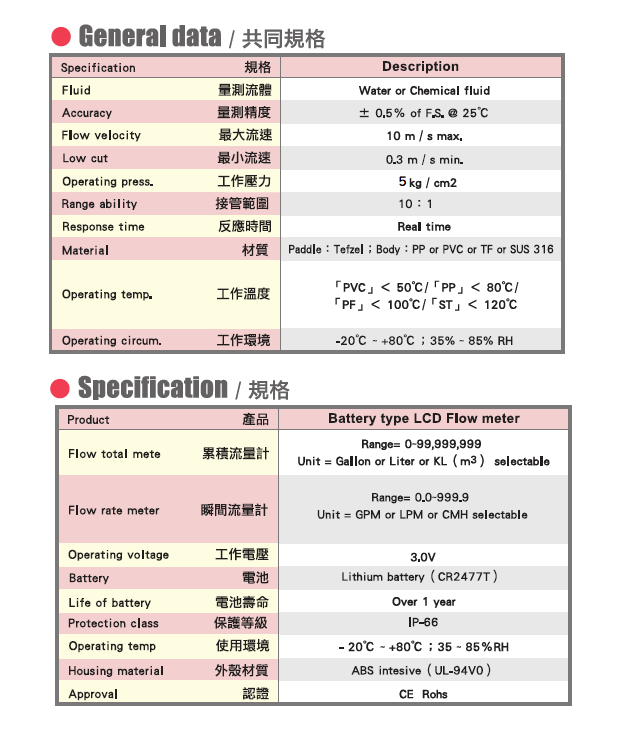

Specifications
Wiring Diagram

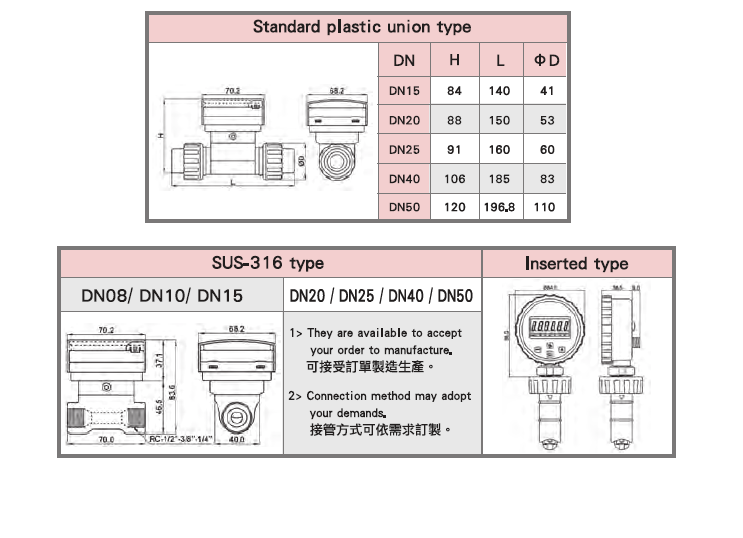

Dimensions
Product Manual
FSFM-KTC
